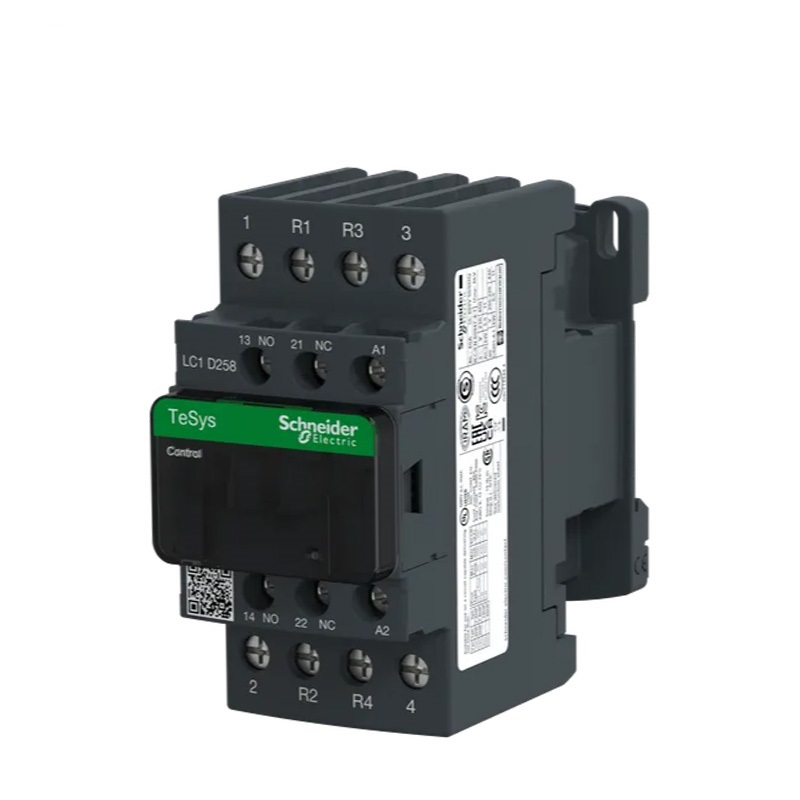

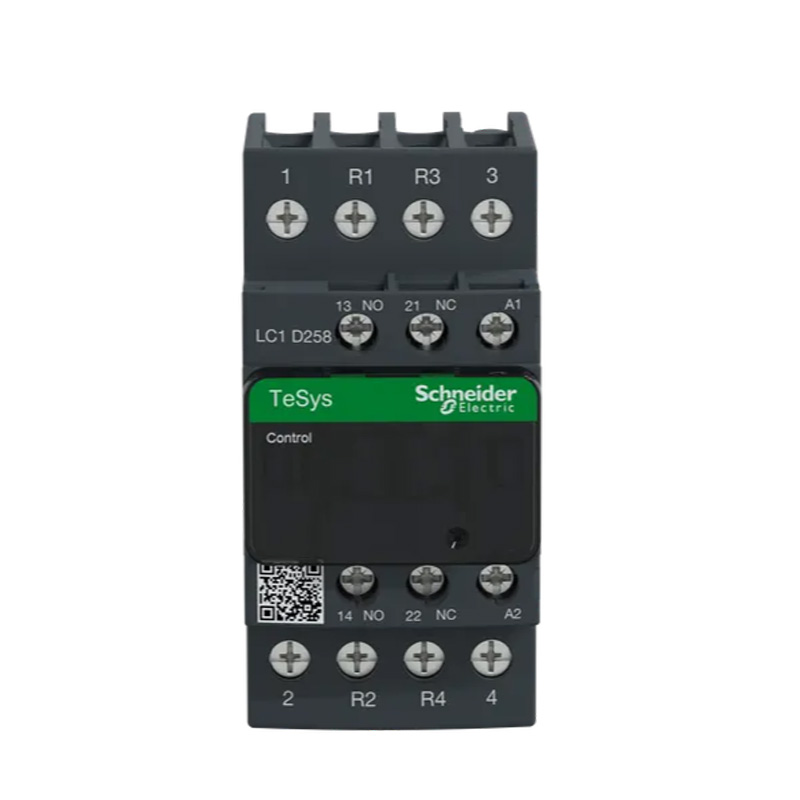

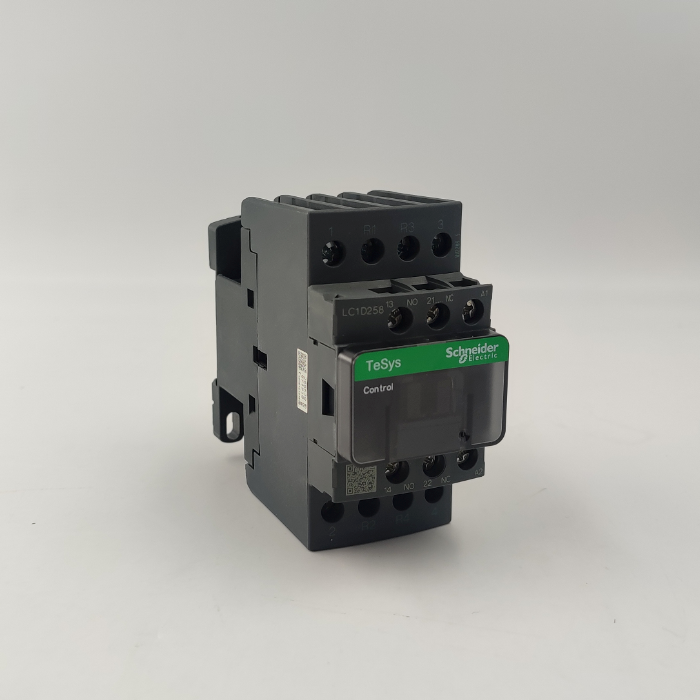

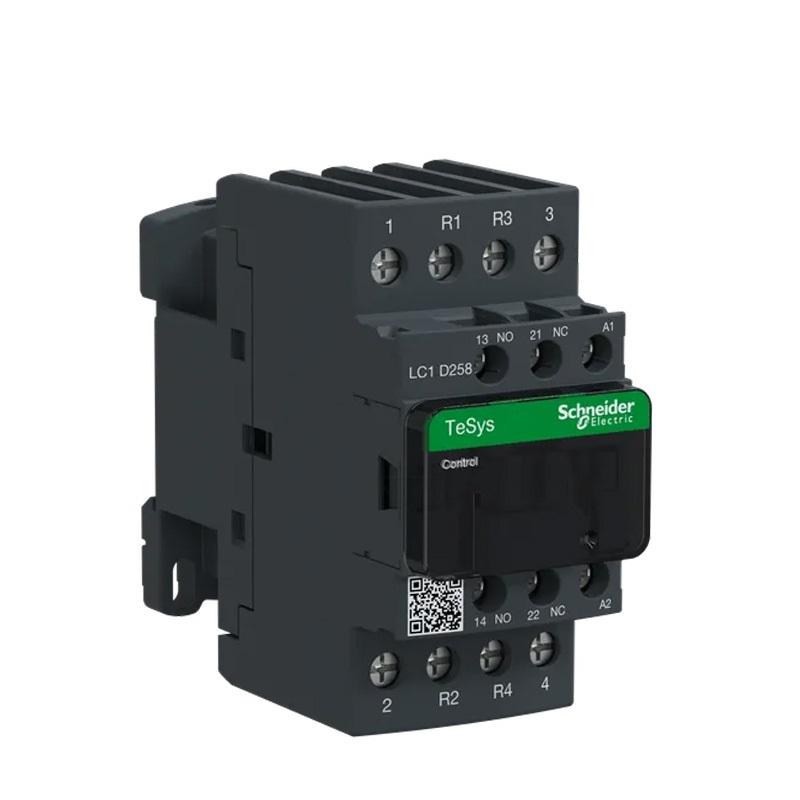

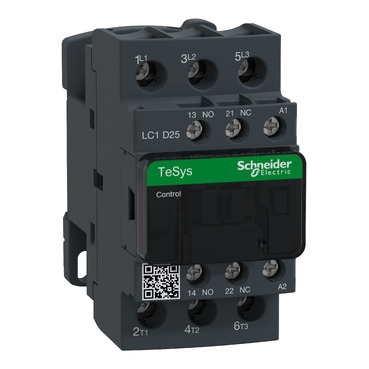

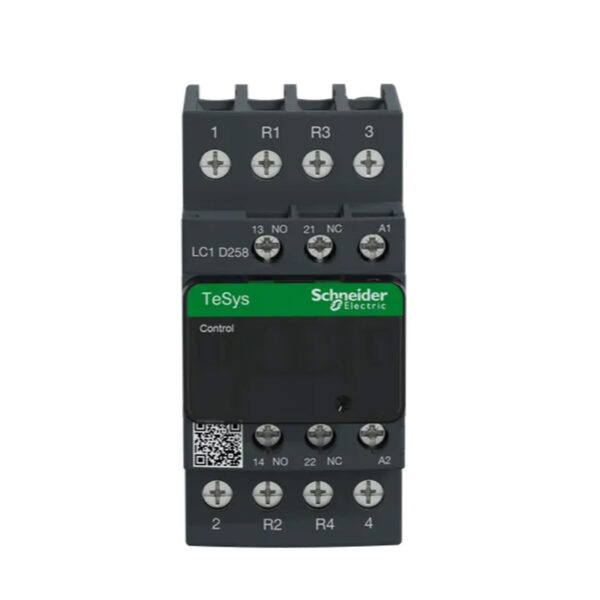

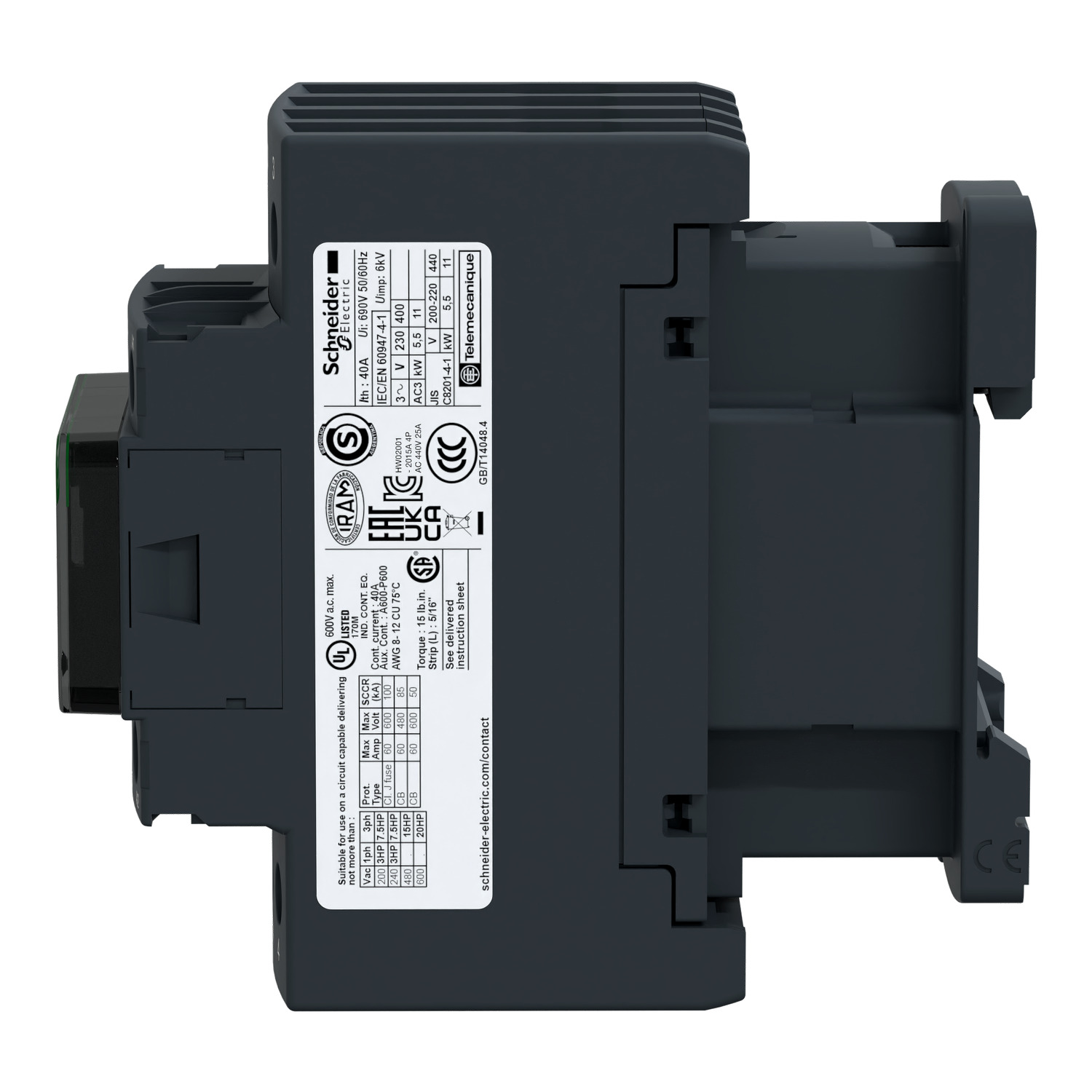

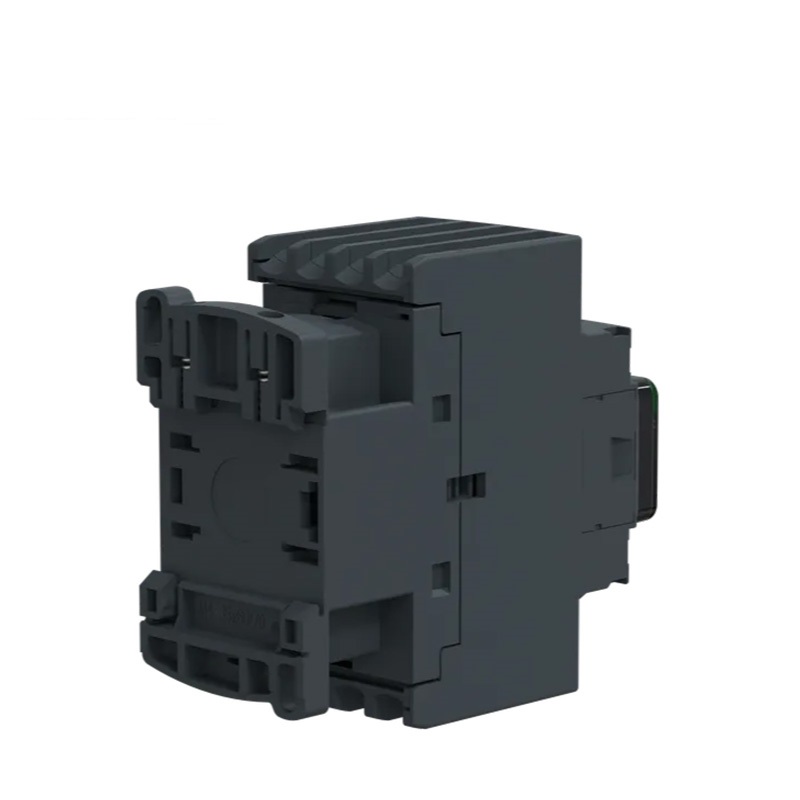

Product Overview
- Series: TeSys D Green (Energy Efficient)
- Type: Heavy-duty 3-pole contactor
Application:
- Industrial motor control (up to 45kW at 400V)
- High-power switching applications
- HVAC, pumps, compressors, heavy machinery
Key Specifications
- Parameter Value
Rated current (Ith) 80A at 400V AC-3
Rated power 22kW (230V) / 45kW (400V)
Coil voltage 230V AC 50/60Hz (“G7” suffix)
Poles 3NO (main contacts) + 1NO+1NC (auxiliary)
Mechanical life 1.5 million operations
Electrical life 100,000 operations (AC-3)
Special Features
- ✔ Energy efficient coil (85% less consumption than standard)
✔ Built-in surge suppressor
✔ Double-break contacts for higher reliability
✔ Screw terminals (up to 50mm² cables)
✔ Modular design for easy maintenance
Standards Compliance
- IEC/EN 60947-4-1
- UL 508
- CE, RoHS compliant
- EcoDesign Directive compliant
Ordering Code Breakdown
- LC1D258G7:
- LC1D = TeSys D series
- 25 = Frame size (25 = 80A)
- 8 = 1NO+1NC auxiliary contacts
- G7 = 230V AC coil
Installation Data
Mounting: Panel mount (standard) or DIN rail (optional kit)
Terminals:
- Main: 16-50mm²
- Auxiliary: 0.5-2.5mm²
- Torque: 5.5Nm (main), 1.2Nm (auxiliary)
- Dimensions: 140×128×112mm (W×H×D)
- Weight: 2.3kg
Accessories
- Mechanical interlocks (LA9-D258)
- Additional auxiliaries (LA7-D…)
- DIN rail adapter (LADR…)
