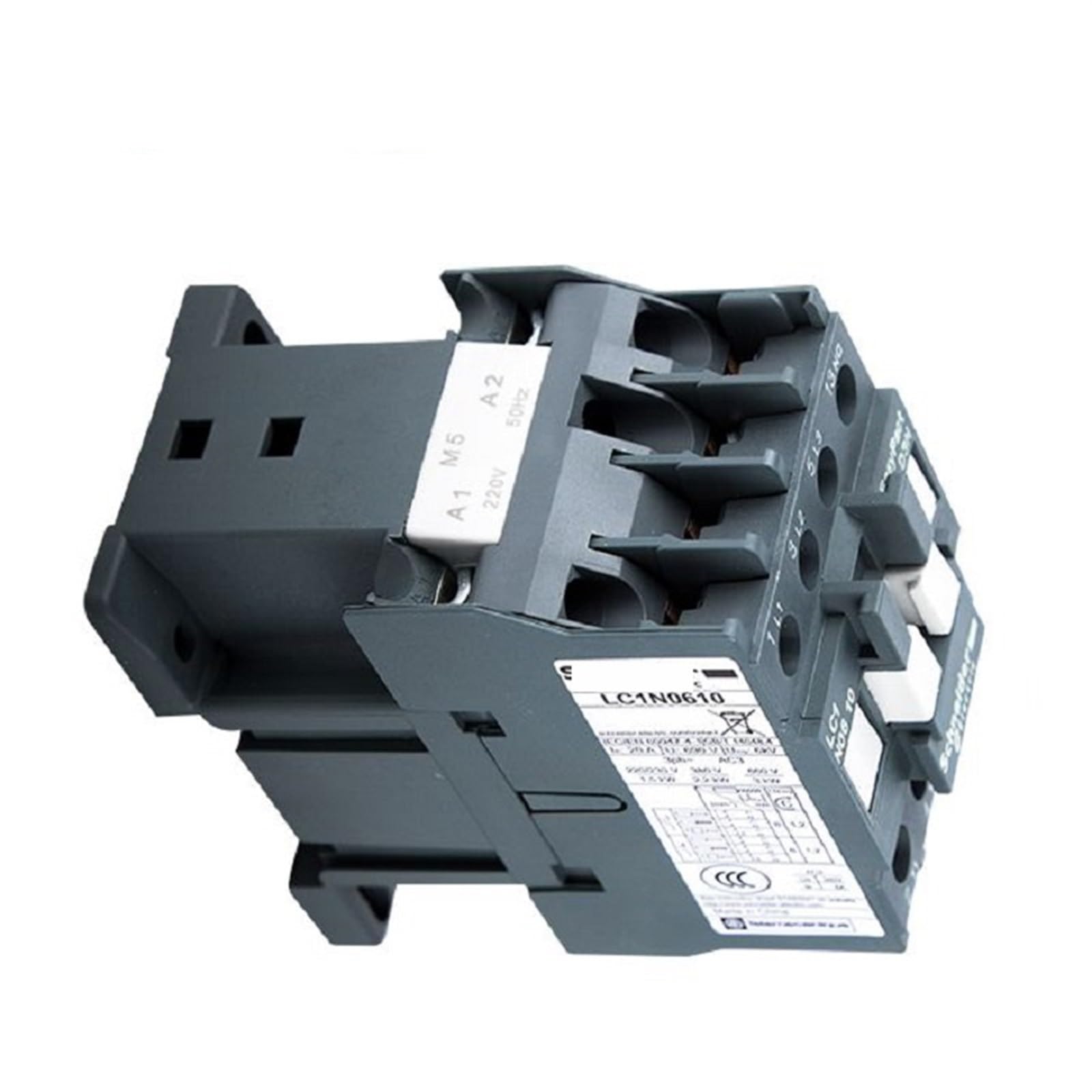

Product Overview
- Series: TeSys N (LC1N range)
- All Series: LC1N0601B5N LC1N0601CC5N LC1N0601F5N LC1N0601M5N LC1N0601Q5N LC1N0610B5N LC1N0610CC5N LC1N0610F5N LC1N0610M5N LC1N0610Q5N
- Type: Compact 3-pole electromechanical contactor
Application:
- Light motor control (small pumps, fans up to 3kW at 400V)
- General switching in control panels
- HVAC and building automation

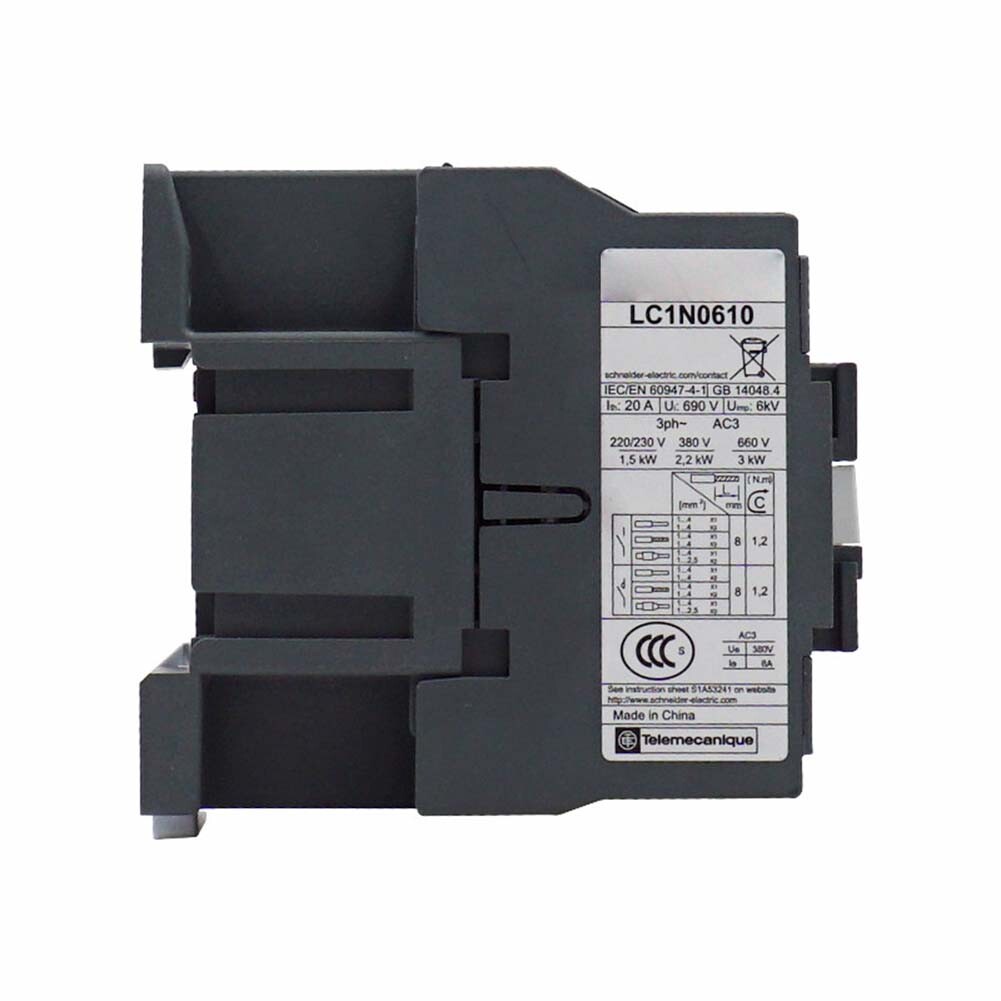

Key Specifications
- Parameter Value
Rated current (Ith) 6A at 400V AC-3
Rated power 2.2kW (230V) / 3kW (400V)
Coil voltage 24V AC/DC (universal)
Poles 3NO (normally open main contacts)
Mechanical life 3 million operations
Electrical life 100,000 operations (AC-3)
Product Features
- ✔ Ultra-compact design (22.5mm per pole)
✔ Spring-cage terminals (tool-less wiring)
✔ DIN rail mounting (35mm)
✔ Silver alloy contacts
✔ Built-in surge suppression (M5 suffix)

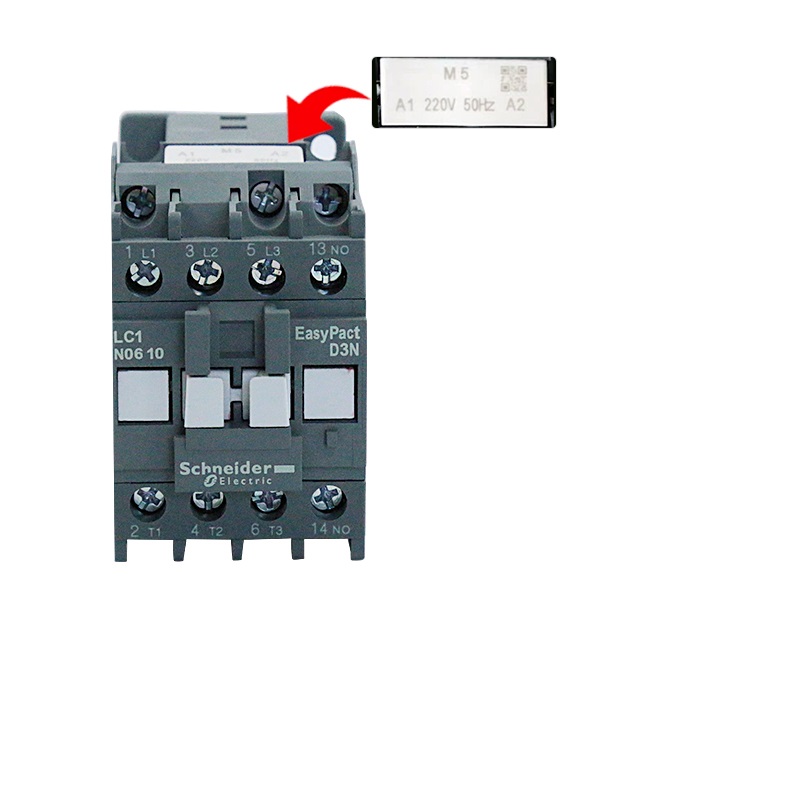

Special Characteristics

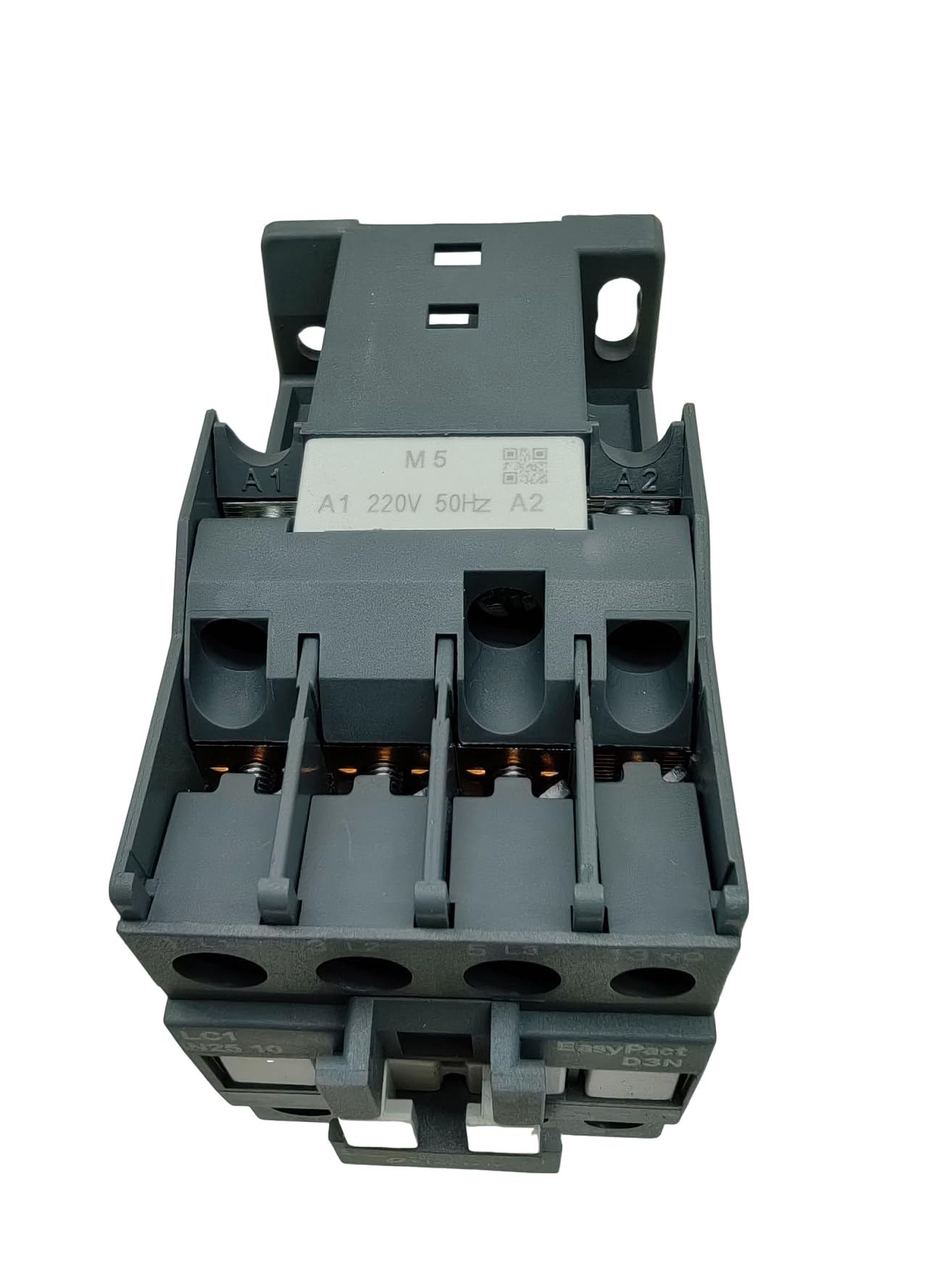

- “M5” suffix indicates built-in RC suppressor
- “N” in model = TeSys N series (space-saving)
- Universal coil works with both AC/DC 24V
Standards Compliance
- IEC/EN 60947-4-1
- UL 508
- CE, RoHS compliant
- Ordering Information
Full reference: LC1N0610M5N
- LC1N = TeSys N series
- 06 = 6A rating
- 10 = 1NO auxiliary contact
- M5 = Built-in suppressor
- N = Additional variant code
Accessories:
- Additional auxiliary contacts (LADN…)
- Mechanical interlocks

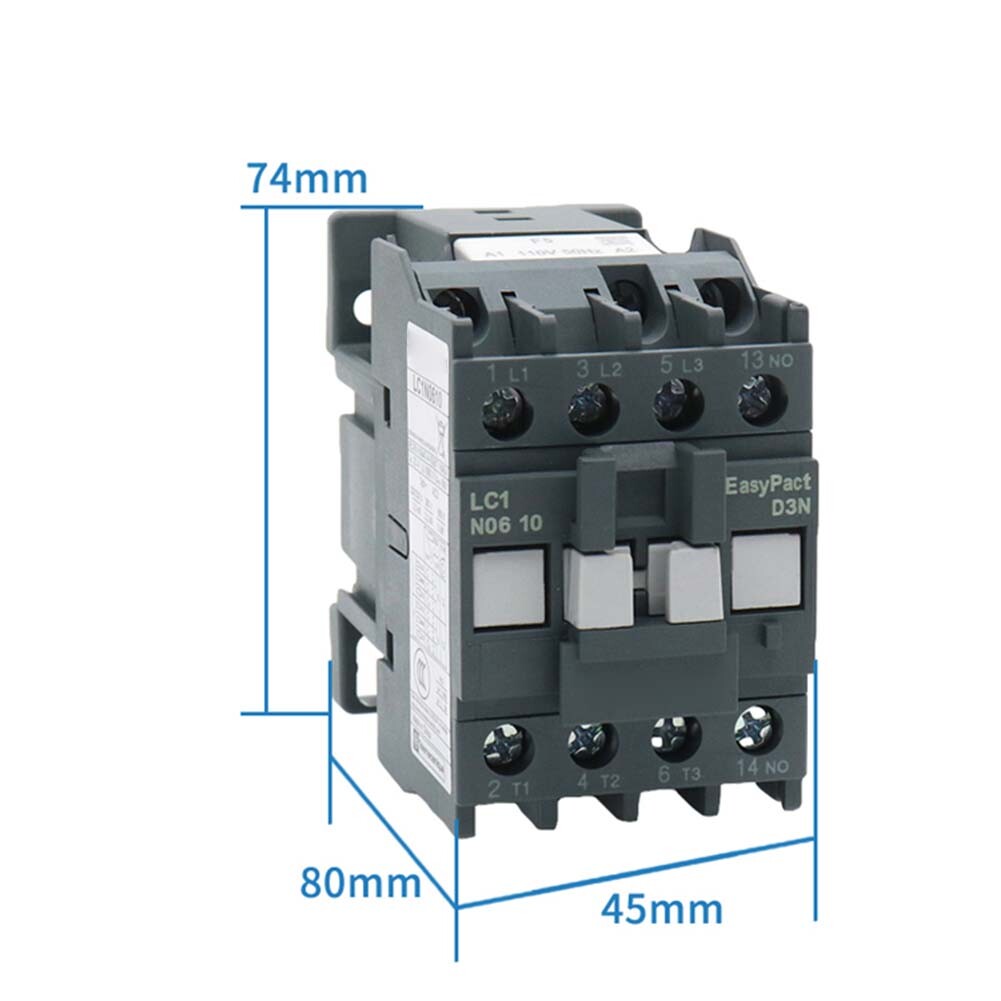

Installation Notes
- Terminals: 0.5-2.5mm² conductors
- Mounting torque: 0.8Nm for spring terminals
- Ambient temperature: -25°C to +60°C
- IP rating: IP20 (requires enclosure)
